Elite Thermal Casement Window

Series: 122 Series
Product Type: Dual Thermal Break Aluminum Casement Window
Profile Thickness: 2.5 mm
Opening Options: Casement Opening / Outward Bottom-Hung Opening
Glazing Reference: 5 + 25A + 5 Insulated Glazing

Elite Dual Thermal Casement Window is designed for projects that require a wider glass view, stronger thermal performance, and a more premium façade presentation. It is suitable for high-end villas, large residential openings, and modern façade applications where balanced proportions, practical ventilation, and refined appearance are all important.

A thermal break aluminum casement window combines operable casement functionality with a thermally separated aluminum frame structure and insulated glazing. This Elite model uses a dual thermal break aluminum system and can be configured around project opening, glazing, hardware, screen, and finish requirements. For an overview of casement and other window types, see our Window Types & Project Guide.

The configuration shown on this page is one reference display model used for presentation purposes. This display version is based on the 122 Series with 2.5 mm profile thickness. For this type of dual thermal break casement window system, other suitable series and profile widths can also be selected according to project requirements, design preferences, opening needs, and performance expectations.

Enhanced thermal system
Built on a dual thermal break aluminum system for projects that require improved insulation, comfort, and a more premium window solution.

Large glass viewing area
Designed to create a broader glazed surface for daylight, visibility, and a clean façade appearance.

Flexible opening configuration
Fixed glass areas, operable sections, opening directions, panel combinations, and overall proportions can all be adjusted according to project requirements.

Glazing options
Standard insulated glazing reference: 5 + 25A + 5. Different glazing specifications can be selected according to project requirements, including glass combinations for energy efficiency, sound control, and safety needs.

Hardware options
Standard hardware configuration includes black HOPO hardware, together with a full hinge set and oxidized anti-fall safety rope.

Screen options
A standard high-transparency alloy screen is available, with optional 304 stainless steel mesh.

Protection grille options
Fixed or operable protection grille configurations are available according to safety needs and façade design preferences.

Glazing bead detail
Standard round-edge glazing bead detail provides a softer and more refined finished appearance.

Finish options
Available finish options for this model include Metallic Coffee and Fluorocarbon Grey for the exterior, with Fluorocarbon Grey and Aurora Black available for the interior.

This window system is suitable for:
- high-end villa façades
- villa living room window systems
- large residential openings
- modern residential and selected architectural projects

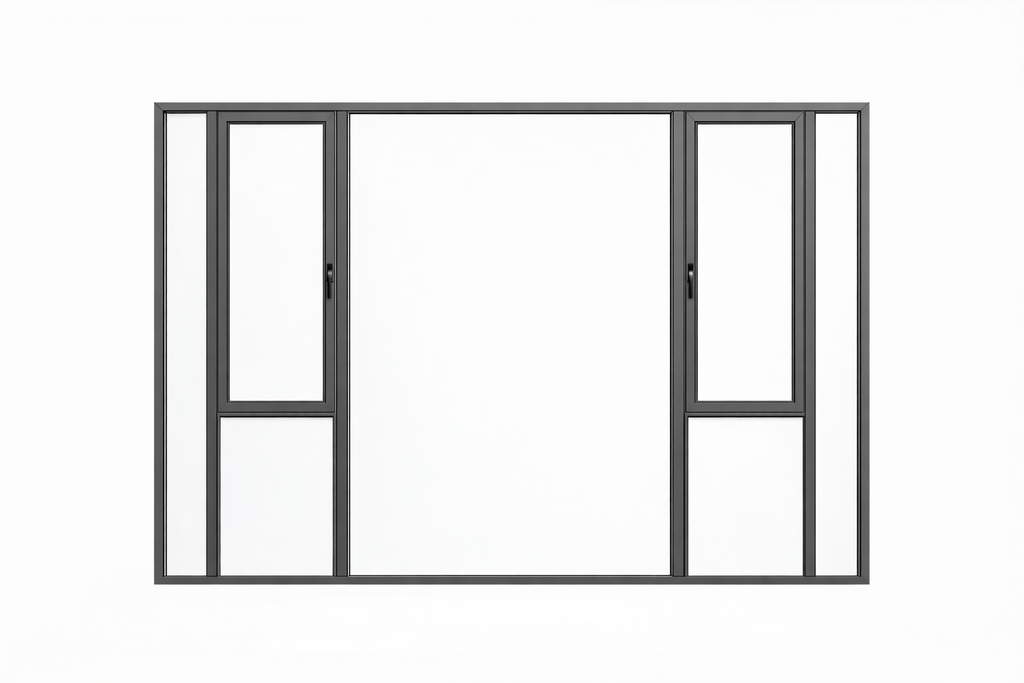

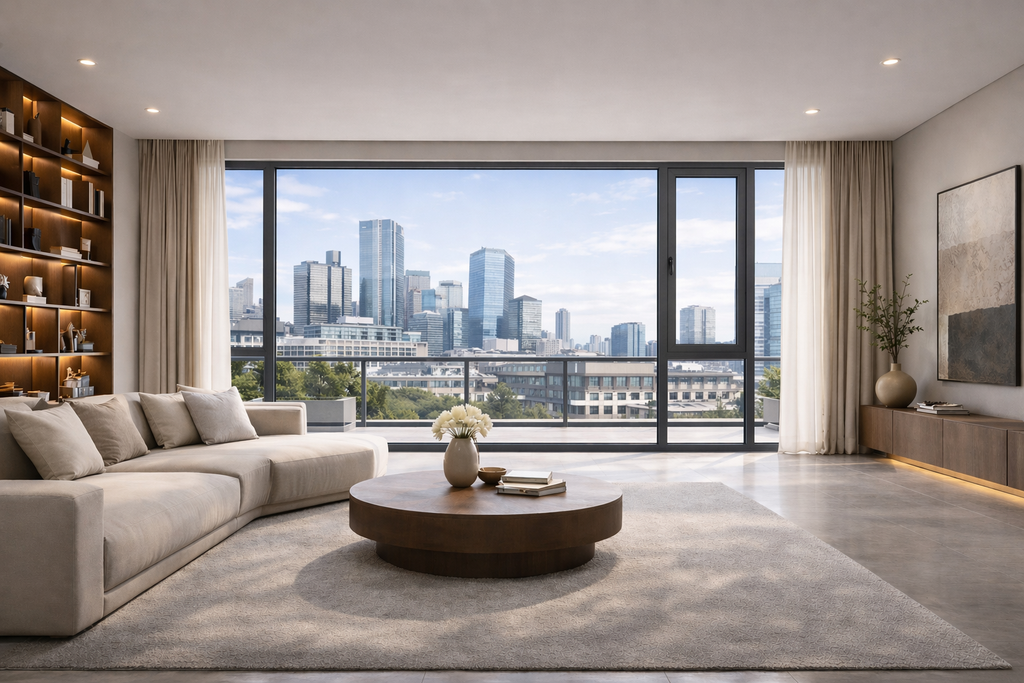

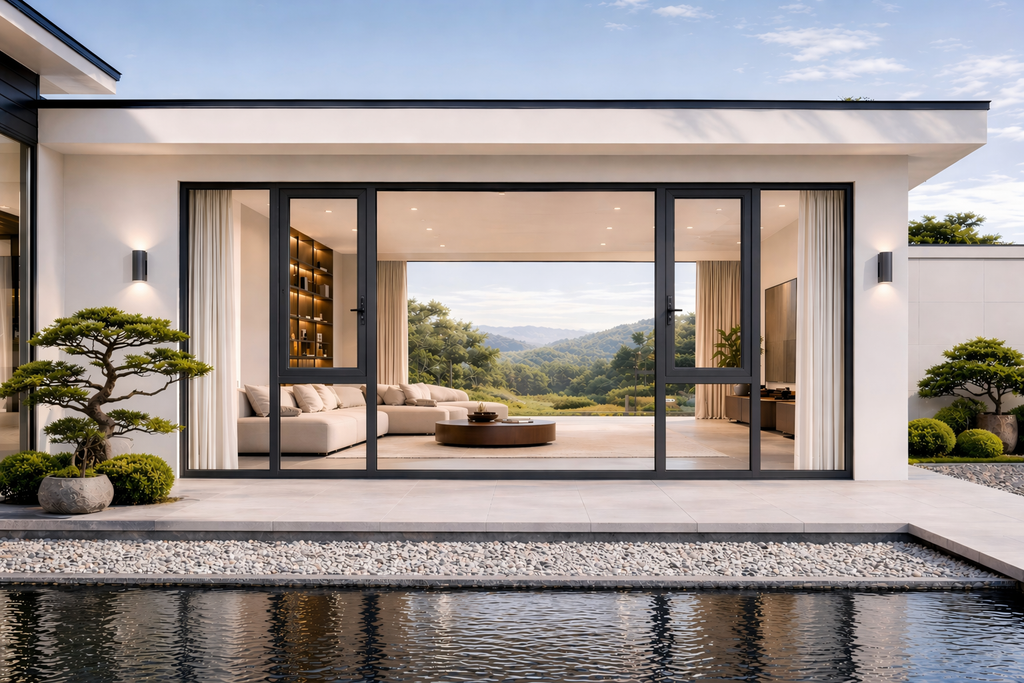

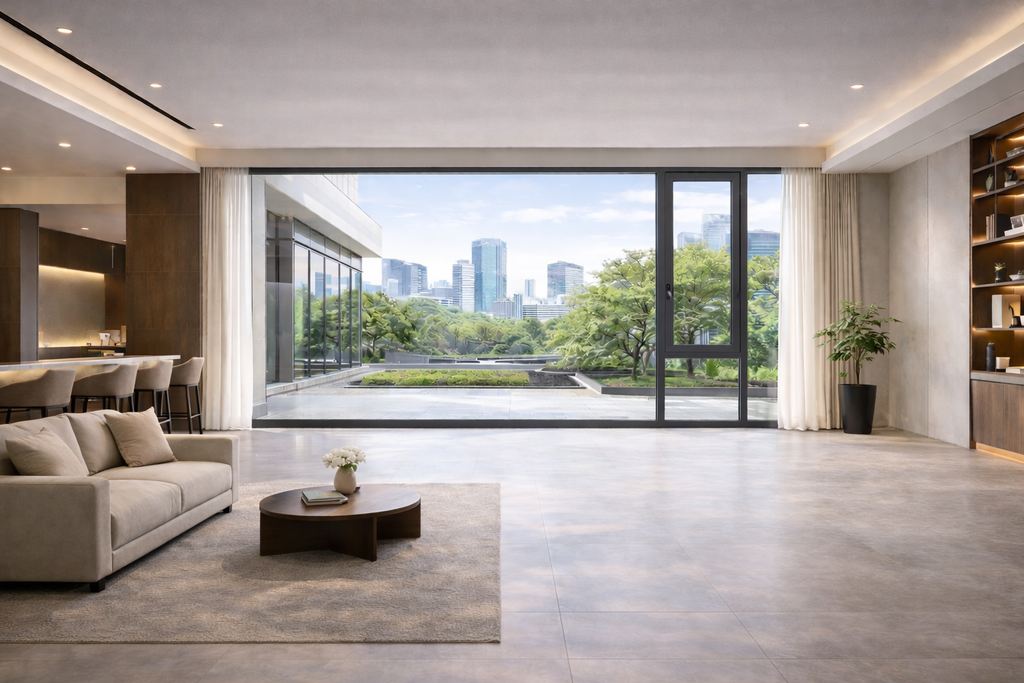

The images on this page show one suggested display approach for presentation purposes only. Actual product configuration can be customized according to project dimensions, opening requirements, elevation design, and usage preferences.

As a customized window solution, this product can be developed to match different architectural styles and project conditions. Dimensions, panel layout, glazing specification, opening method, screen options, protection details, hardware, and finishes can all be tailored to suit the needs of each project. For broader product selection and specification coordination, see our project specification support guide.

What is a thermal break aluminum casement window?

It is an aluminum casement window system that uses a thermal break in the frame construction and insulated glazing, combining operable ventilation with a frame system designed for improved insulation and comfort.

What opening configurations are available?

The reference model supports Casement Opening and Outward Bottom-Hung Opening. Fixed glass areas, operable sections, opening directions, panel combinations, and overall proportions can also be adjusted according to project requirements.

Can glazing, hardware, screens and finishes be customized?

Yes. Different glazing specifications, hardware configurations, screen options, protection details, and finishes can be selected according to project requirements. The current reference includes 5 + 25A + 5 insulated glazing, black HOPO hardware, a high-transparency alloy screen with optional 304 stainless steel mesh, and the finish options listed above.

What information should I send for a project quotation?

Send us your drawings, opening sizes, quantities, reference images, project location, and any known glazing, opening, hardware, screen, finish, or performance requirements. Our team can review the information and discuss a suitable project configuration.

Send us your drawings, sizes, quantities, or reference images. Our team can provide practical support for specification planning, configuration suggestions, and project-based window solutions tailored to your requirements.
