Slimline Sliding Window
Product Overview
Series: 111 Bridge-Type Thermal Break Sliding Window
Product Type: Thermally Broken Aluminum Sliding Window
Profile Thickness: Lower Track 3.0 mm
Sash Width: 52 mm
Opening Options: Sliding Opening
Track Type: Bridge-Type Track / Flat Track
Glazing Reference: Fixed 5 + 12A + 5 Insulated Glazing
Hardware: BOGO Automatic Latch Lock with Key
Screen: Standard Alloy High-Transparency Screen; Optional 304 Stainless Steel Mesh
Glazing Bead: Large Square Glazing Bead
Interior Finish: Fluorocarbon Grey
Exterior Finish: Fluorocarbon Grey / Fluorocarbon Coffee
Modern Sliding Window is designed for projects that require wide horizontal views, smooth sliding operation, and practical everyday usability. It is suitable for bedrooms, secondary living spaces, study rooms, and other residential applications where broad daylight, simple operation, and a clean modern appearance are important.
Series Flexibility
The configuration shown on this page is one reference display model used for presentation purposes. This display version is based on the 111 Bridge-Type Thermal Break Sliding Window system with 3.0 mm lower track thickness and 52 mm sash width. For this type of thermally broken sliding window system, other suitable series and profile widths can also be selected according to project requirements, design preferences, opening needs, and performance expectations.
Key Features
Wide horizontal viewing area
Designed to create a broad glazed surface for daylight, visibility, and a clean façade appearance across wider window openings.
Smooth sliding operation
This system is suitable for projects that prefer sliding ventilation and space-saving opening logic, especially in rooms where inward or outward sash operation is less practical.
Thermally broken aluminum system
The 111 bridge-type thermal break sliding window system is suitable for projects that require improved insulation performance, practical comfort, and a refined modern window solution.
Fixed insulated glazing
This reference display model uses fixed 5 + 12A + 5 insulated glazing, providing a clear and stable glazing specification for project reference.
BOGO automatic latch lock
Standard hardware configuration includes BOGO automatic latch lock with key, offering practical daily locking and convenient sliding window operation.
Screen options
Standard configuration includes an alloy high-transparency screen for everyday ventilation and insect protection. Optional 304 stainless steel mesh is also available for projects requiring stronger screen material.
Track options
This system supports bridge-type track and flat track options, allowing the track solution to be selected according to installation needs, appearance preference, and project conditions.
Glazing bead detail
Standard large square glazing bead detail provides a clean, structured, and practical finished appearance.
Finish options
Available finish options for this model include Fluorocarbon Grey and Fluorocarbon Coffee for the exterior, with Fluorocarbon Grey available for the interior.
Recommended Applications
This window system is suitable for:
- bedroom windows
- secondary living room windows
- study room landscape windows
- residential sliding window applications
- modern residential projects with wide horizontal openings
Reference Display Configuration

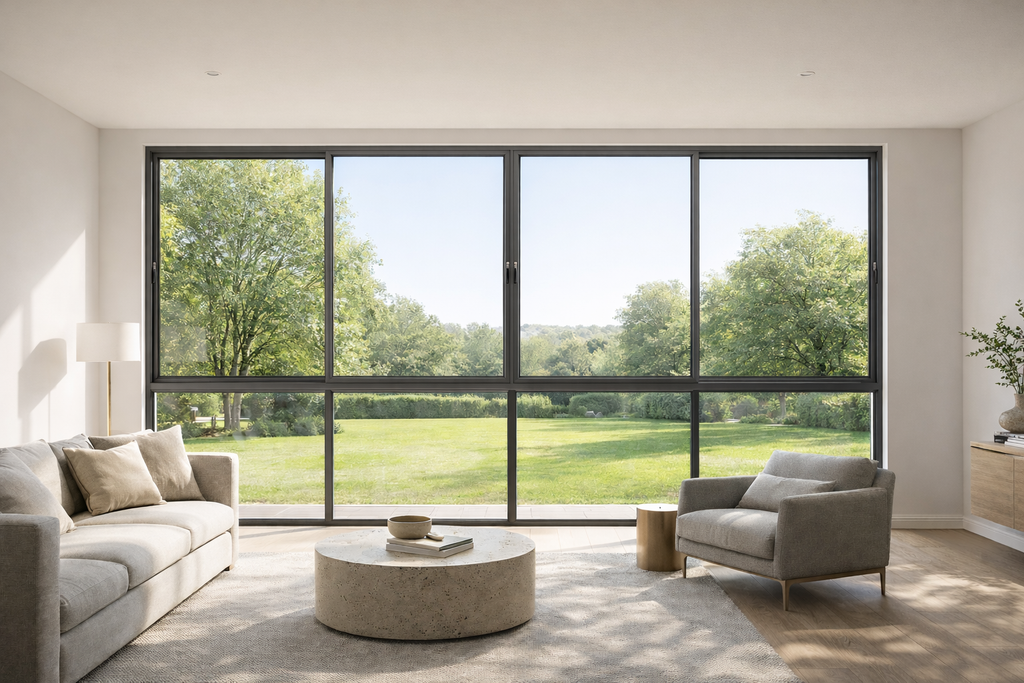

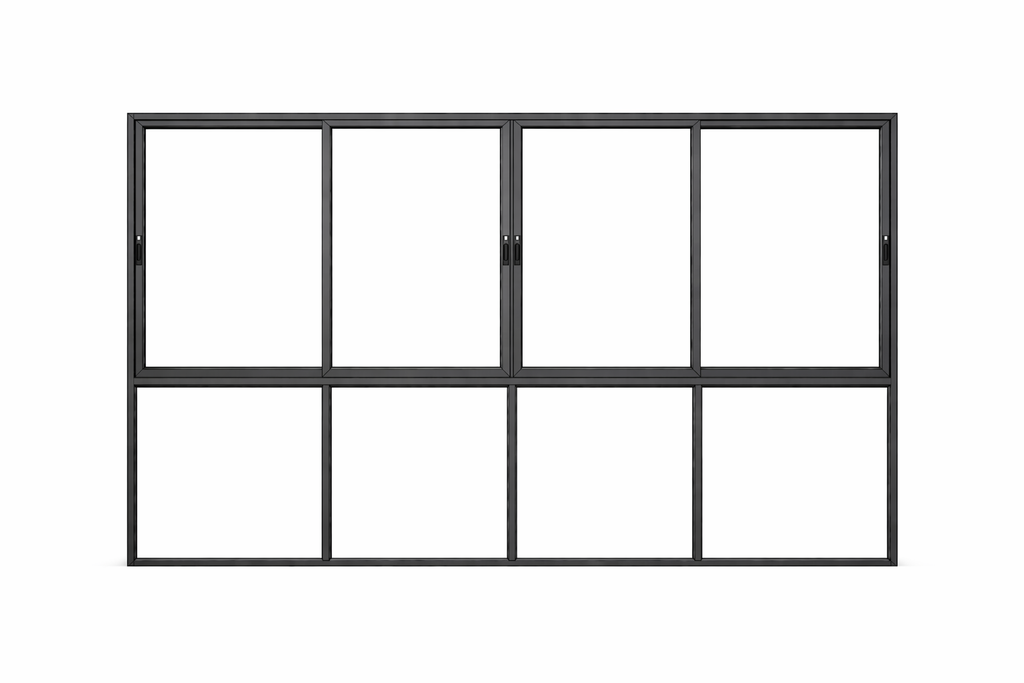

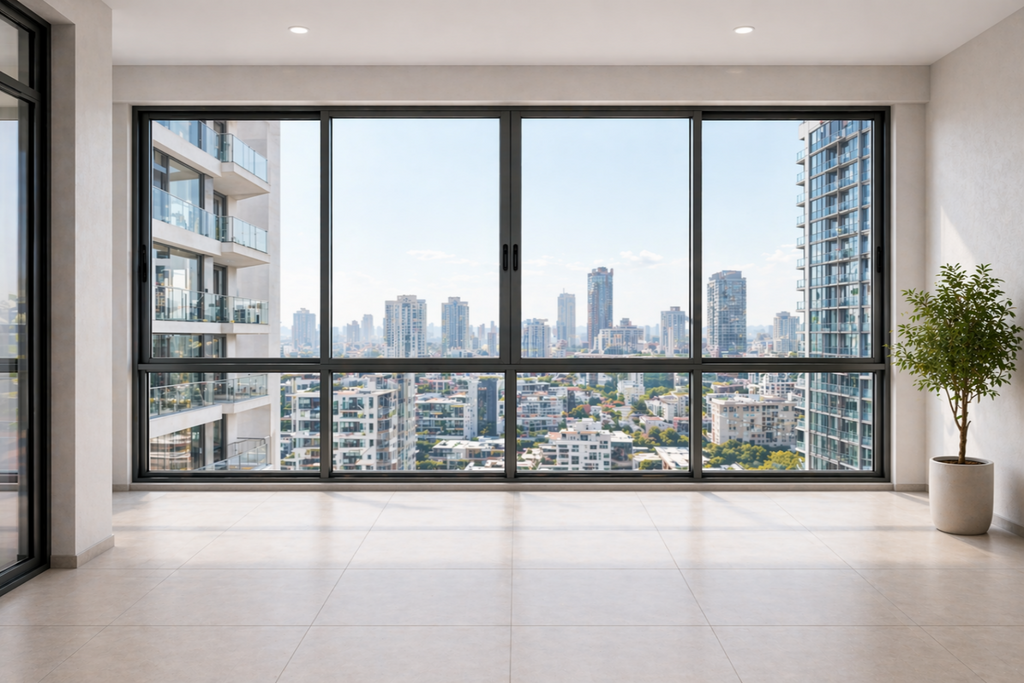

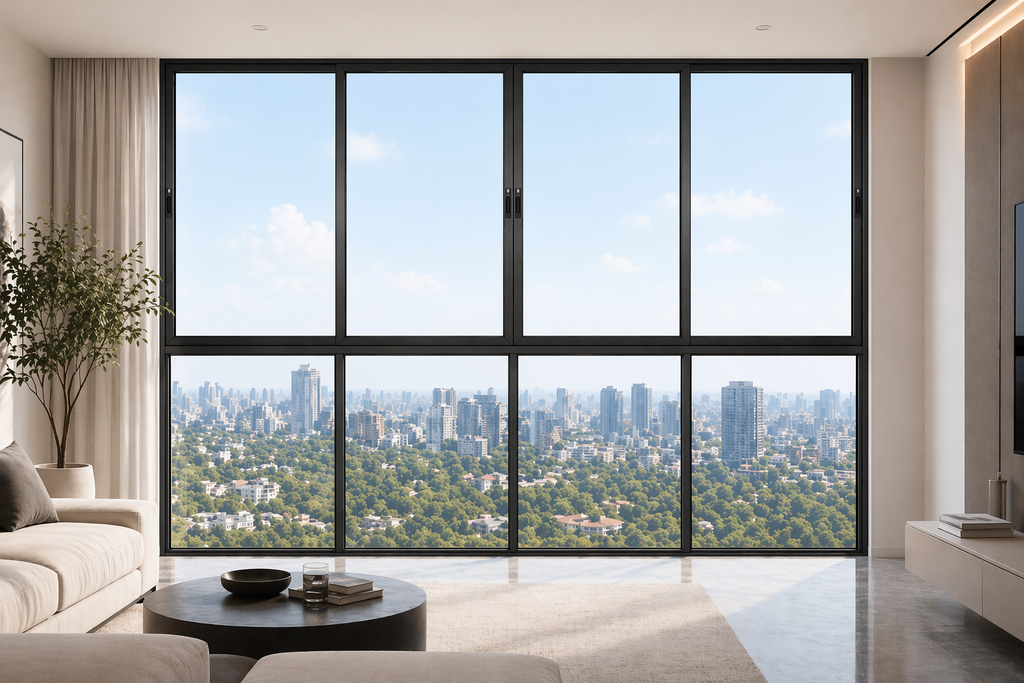

The images on this page show one suggested display approach for presentation purposes only. This reference model is based on the 111 Bridge-Type Thermal Break Sliding Window system, with 3.0 mm lower track thickness, 52 mm sash width, fixed 5 + 12A + 5 insulated glazing, BOGO automatic latch lock with key, standard alloy high-transparency screen, large square glazing bead, and fluorocarbon finish options.
Actual product configuration can be customized according to project dimensions, panel arrangement, sliding direction, track type, elevation design, and usage preferences.
Project-Based Customization
As a customized window solution, this product can be developed to match different architectural styles and project conditions. Dimensions, panel layout, sliding combination, track type, hardware, screen material, glazing bead detail, and finish selections can all be planned according to the needs of each project.
Need Custom Project Support?
Send us your drawings, sizes, quantities, or reference images. Our team can provide practical support for specification planning, configuration suggestions, and project-based sliding window solutions tailored to your requirements.
