Slimline Hinged Door
Product Overview
Series: 40 × 16 Slim Frame Swing Door
Product Type: Slim Frame Aluminum Swing Door
Profile Thickness: 2.0 mm
Sash Width: 16 mm
Opening Options: Single Swing Door / Double Swing Door
Glazing Reference: Standard 8 mm Single Glass; Insulated Glazing Available for Applicable Configurations
Hardware / Lock: Top-and-Bottom Hinges with Weidun Locking Hardware
Finish Options: Same finish group as the 40 × 16 Slim Frame System
Special Note: Porcelain Light Grey and Porcelain Platinum Grey finishes are available for swing doors as upgraded finish options
Slim Frame Swing Door is designed for projects that require a clean entrance solution, slim visual framing, and a more refined swing-door presentation. It is especially suitable for entry doors, balcony side doors, courtyard side access doors, and modern residential access points where simple opening logic, practical daily use, and a light contemporary appearance are all important.
Series Flexibility
The configuration shown on this page is one reference display model used for presentation purposes. This display version is based on the 40 × 16 Slim Frame Swing Door system with 2.0 mm profile thickness and 16 mm sash width. For this type of slim frame swing door system, other suitable series and profile widths can also be selected according to project requirements, design preferences, opening needs, and performance expectations.
Key Features
Slim frame presentation
Designed to reduce visible frame impact and create a cleaner, lighter, and more modern swing-door appearance.
Single and double swing options
This system can be specified as a single swing door or a double swing door according to project requirements, opening width, and architectural layout.
Clean entrance solution
Suitable for projects that require a straightforward swing-door entrance logic rather than a sliding-door presentation.
Standard 8 mm single glass
This reference display model uses 8 mm single glass as the standard glazing configuration, providing a clean and lightweight swing door solution.
Optional insulated glazing
Insulated glazing can also be selected for applicable configurations according to project requirements and system application needs.
Top-and-bottom hinge system
Standard hardware configuration includes top-and-bottom hinges, providing a clean and practical swing-door opening structure.
Weidun locking hardware
This system is equipped with Weidun locking hardware, offering practical daily locking performance and a cleaner hardware solution for slim frame swing door applications.
Finish options
Available finish options follow the same finish group as the 40 × 16 Slim Frame System, including Skin Black, Mixed Glaze White, Moonlight Grey, Cream Grey, Porcelain Light Grey, and Porcelain Platinum Grey.
Recommended Applications
This door system is suitable for:
- entrance doors
- balcony side doors
- courtyard side access doors
- modern residential access points
- contemporary private homes
- projects requiring a slim swing-door solution
Reference Display Configuration

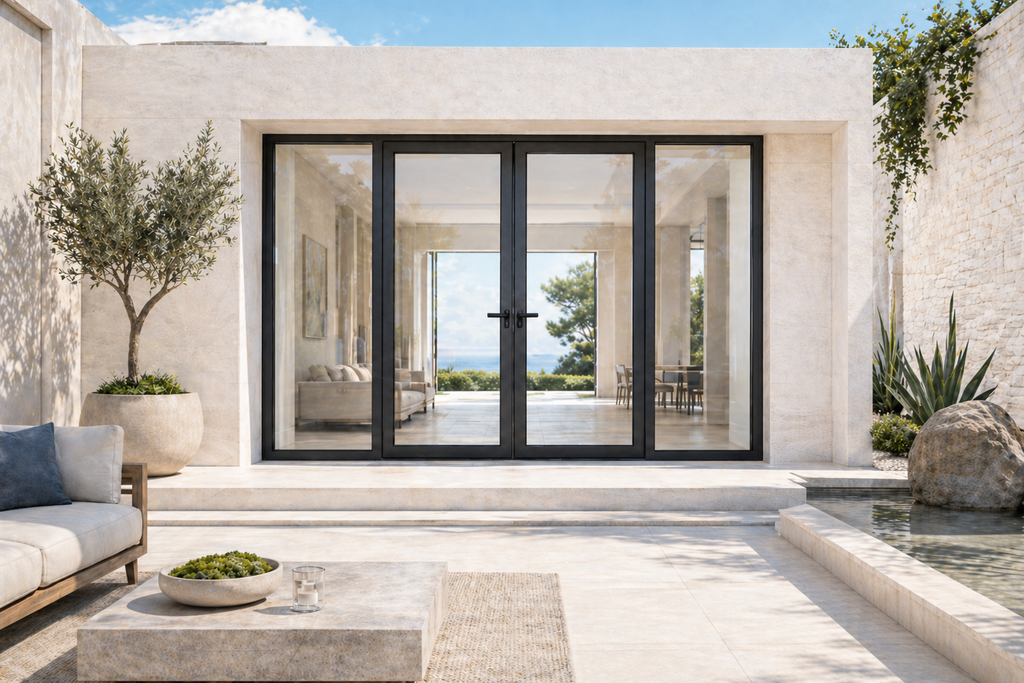

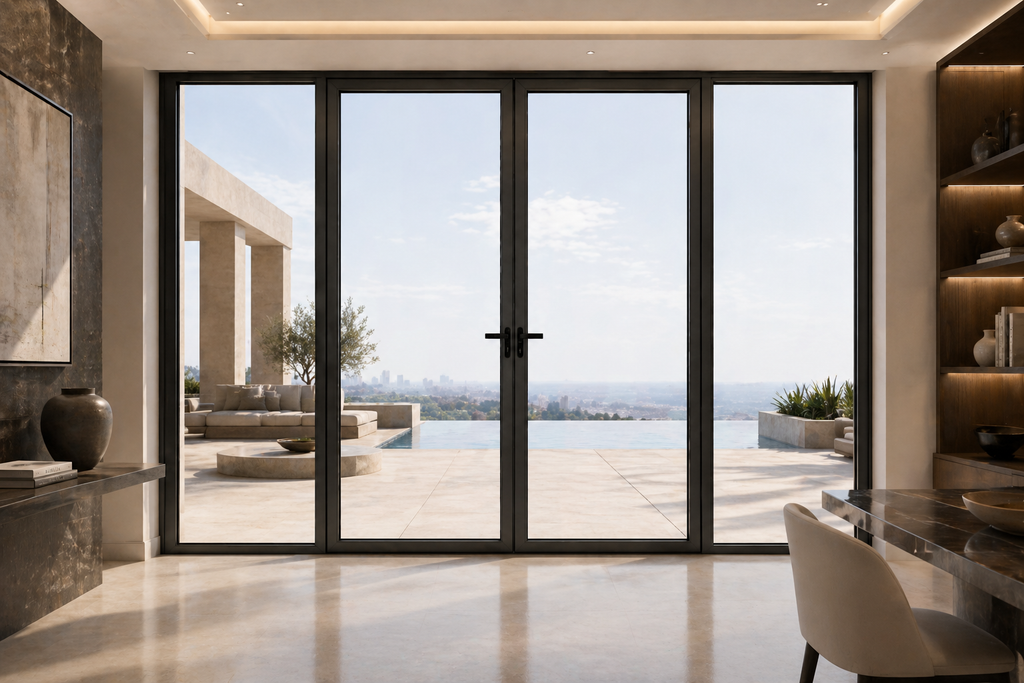

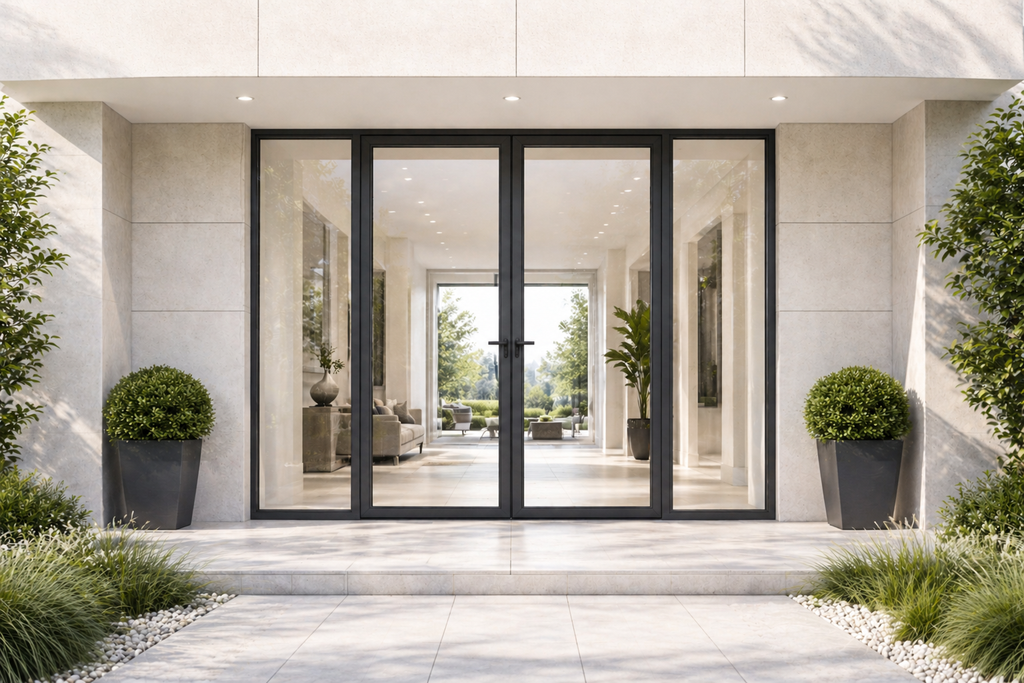

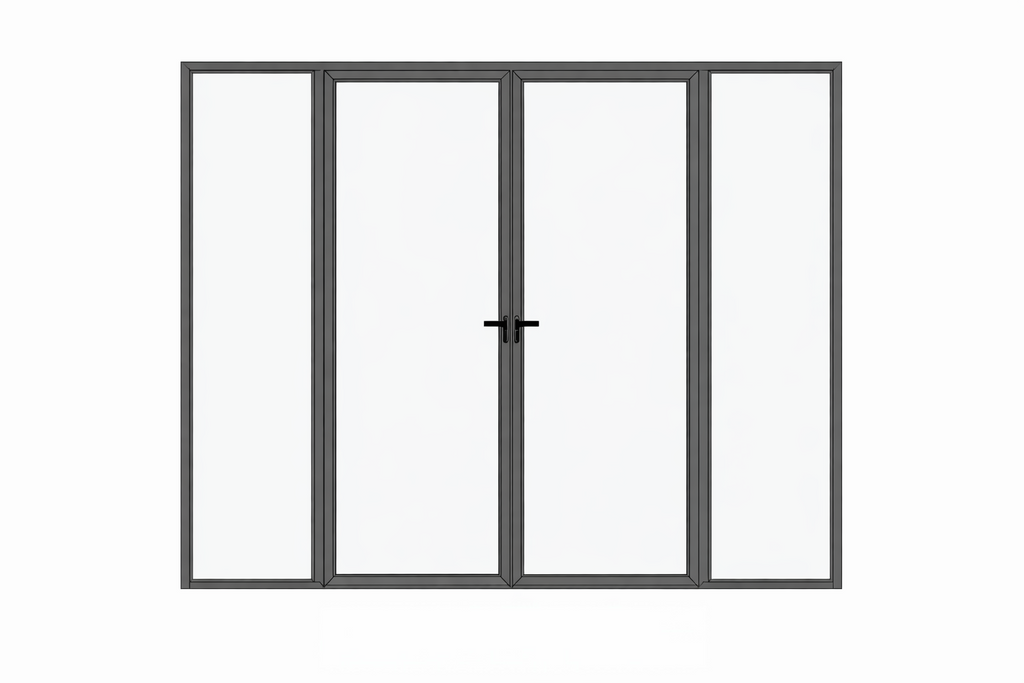

The images on this page show one suggested display approach for presentation purposes only. This reference model is based on the 40 × 16 Slim Frame Swing Door system, with 2.0 mm profile thickness, 16 mm sash width, standard 8 mm single glass, top-and-bottom hinges, and Weidun locking hardware.
Actual product configuration can be customized according to project dimensions, opening requirements, single- or double-door arrangement, glazing selection, hardware configuration, finish selection, and architectural preferences.
Project-Based Customization
As a customized swing door solution, this product can be developed to match different architectural styles and project conditions. Dimensions, opening configuration, single- or double-door layout, glazing configuration, hinge system, locking configuration, and finish options can all be planned according to the needs of each project.
For the same slim frame swing door category, different system series and profile widths are also available. The final model can be selected according to project positioning, design style, practical usage needs, and performance requirements.
Need Custom Project Support?
Send us your drawings, sizes, quantities, or reference images. Our team can provide practical support for specification planning, configuration suggestions, and project-based swing door solutions tailored to your requirements.
