Tilt-and-Turn Window
Product Overview
Series: 109 Series
Product Type: Thermally Broken Aluminum Tilt-and-Turn Window
Profile Thickness: 1.8 mm
Opening Options: Inward Opening / Tilt-and-Turn Inward Opening
Glazing Reference: 5 + 20A + 5 Insulated Glazing
Tilt-and-Turn Window is designed for projects that require practical inward opening, controlled ventilation, and a cleaner interior-facing operation experience. It is suitable for bedrooms, private living spaces, and other residential applications where functionality, comfort, and a refined window appearance are all important.
Series Flexibility

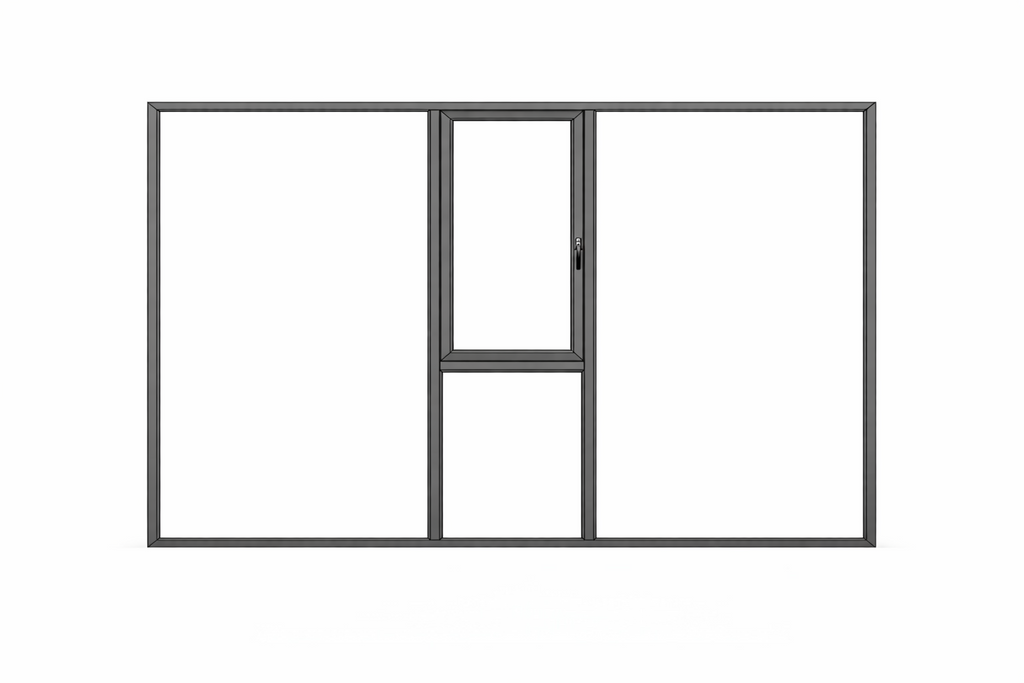

The configuration shown on this page is one reference display model used for presentation purposes. This display version is based on the 109 Series with 1.8 mm profile thickness. For this type of thermally broken tilt-and-turn window system, other suitable series and profile widths can also be selected according to project requirements, design preferences, opening needs, and performance expectations.
Key Features
Dual-function opening
This system supports both inward opening and tilt-and-turn inward opening, offering flexible daily use and controlled ventilation according to different living needs.
Thermally broken aluminum system
Suitable for projects that require improved insulation performance, practical comfort, and a clean architectural appearance.
Glazing options
Standard insulated glazing reference: 5 + 20A + 5. Different glazing specifications can be selected according to project requirements, including glass combinations for energy efficiency, sound control, and safety needs.
Hardware options
Standard hardware configuration includes RLS hardware, together with a full hinge set and oxidized anti-fall safety rope. Optional HOPO hardware is also available according to project requirements.
Screen options
A standard high-transparency screen is available for this system.
Protection detail
No standard protection grille is specified for this reference configuration, allowing a cleaner and more streamlined appearance.
Glazing bead detail
Standard large square glazing bead detail provides a clean and practical finished appearance.
Finish options
Available finish options for this model include Metallic Grey and Metallic Coffee for the exterior, with Metallic Grey available for the interior.
Recommended Applications
This window system is suitable for:
- bedroom windows
- residential functional windows
- inward-opening window applications
- modern residential projects with higher ventilation and usability requirements
Reference Display Configuration

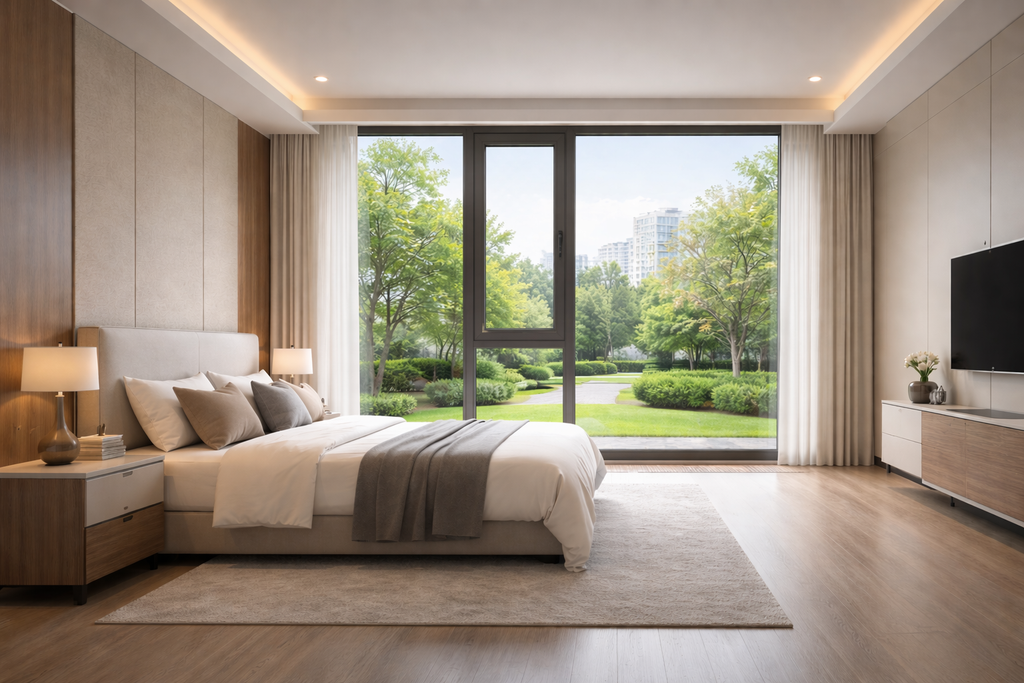

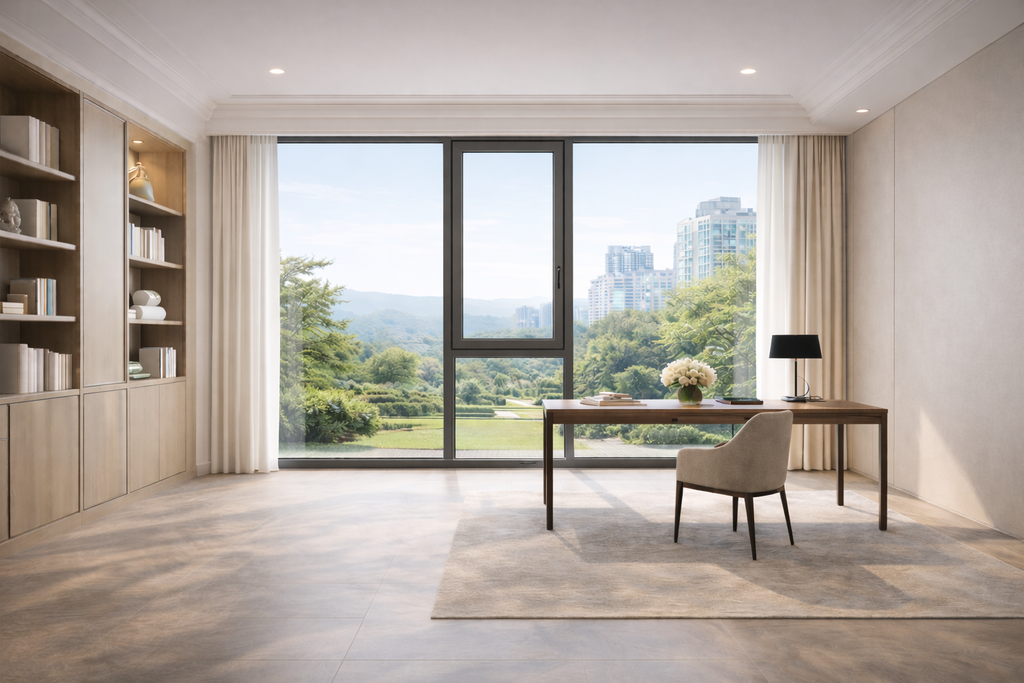

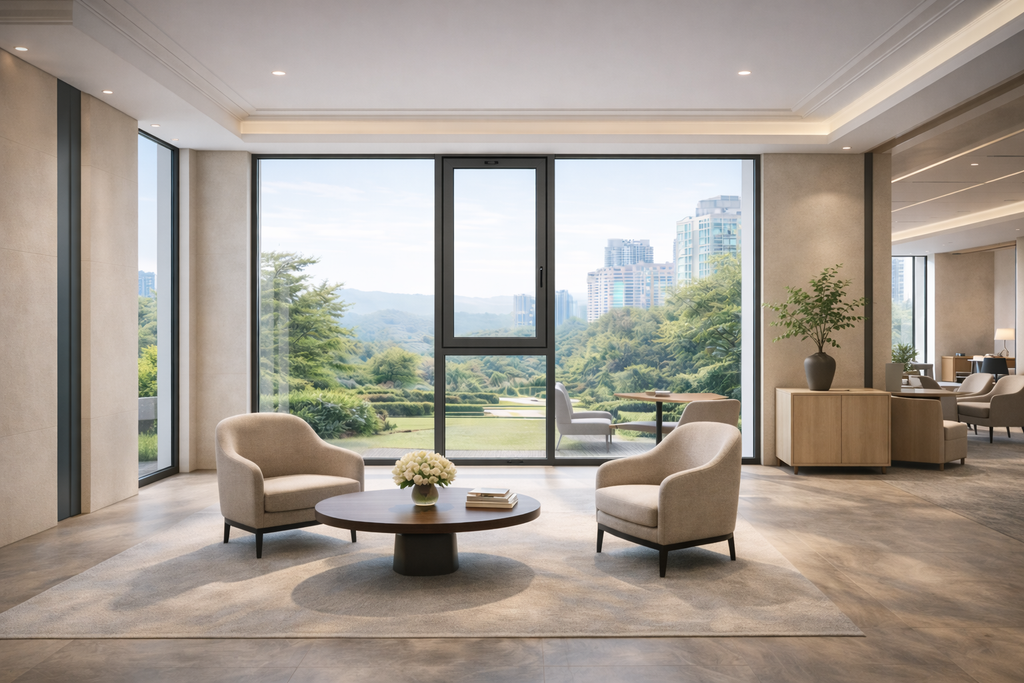

The images on this page show one suggested display approach for presentation purposes only. Actual product configuration can be customized according to project dimensions, opening requirements, elevation design, and usage preferences.
Project-Based Customization
As a customized window solution, this product can be developed to match different architectural styles and project conditions. Dimensions, panel layout, glazing specification, opening method, hardware, screen options, and finishes can all be tailored to suit the needs of each project.
Need Custom Project Support?
Send us your drawings, sizes, quantities, or reference images. Our team can provide practical support for specification planning, configuration suggestions, and project-based window solutions tailored to your requirements.
